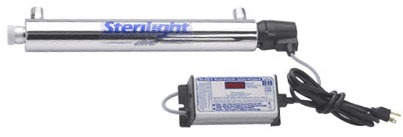

Sterilight S5Q-PA By R-Can
Ultra Violet (UV) 5 gpm UV Water Sterilizer FREE SHIPPING

The Sterilight S5Q-PA provides point-of-entry disinfection with a flow rate of 6.0 gpm (22.7 lpm) at a 30 mJ/cm² dose (4.5 gpm (17.0 lpm) if a dose of 40 mJ/cm² is required.) This modular system, incorporating our new Silver™ controller, is ideal for whole home treatment of a small home or cottage. Placed prior to the water heater, all the water in the home, including the hot water will receive disinfected water. The Silver™ controller provides constant output current and a universal power input (100-240V./50-60Hz.), as well as visually displaying remaining lamp life and total days of operation. All this is packaged in a new water-tight case and come fully CSA and CE compliant. Sterilume™-EX coated low pressure germicidal UV lamps are used to provide an economical way of treating water requiring a 99.99% reduction in bacteria and viruses.

 The S5Q-PA is manufactured with a polished, 304 stainless steel, pressure rated tube and comes with ¾ " MNPT connections. Quality is evident throughout the Silver platform ranging from quartz sleeves with fire-polished ends to seamless connections. Lamp change is easily accomplished without interrupting the water flow and the overmoulded connector can be removed without any additional tools.

Features:

• 6.0 gpm (22.7 lpm) at a 30 mJ/cm² dose (4.5 gpm (17.0 lpm) if a dose of 40 mJ/cm² is required.)
• NEW electronic "ICE" ballasts featuring open loop current control (patent pending), ballast features IEC connector, audible alarm & power-on indicator
• Hard glass, low pressure mercury vapor lamps with high isolation pin design
• Quick-lock molded lamp connector
• Compact design incorporating 304 stainless steel reactor chambers, brilliantly polished for laboratory or medical applications
• Easy servicing - no need to disconnect water flow to change UV lamp
• Open end quartz sleeves and aluminum gland nuts for optimum operating temperature and sealing efficiency
• 99.99% destruction of bacteria, virus, and protozoan cysts (Giardia lamblia & cryptosporidium) at rated flow
• Natures way to protect your water without the addition of harmful chemicals
• Includes mounting clamp
• Seven year warranty on reactor chamber for unparalleled protection
• Product certified by CSA (C  US) and CE
• Product Manual
• Product Specs

• Due to health regulations, all used/installed units/filters are non- refundable.

Installation Procedure:

1. Note the direction of the water flow in the supply line to which the unit is being connected (Left to Right).

2. Refer to the appropriate plumbing diagram and check to see that you have all the necessary fittings.

3. Shut off main water supply valve.

4. Fasten unit to the wall using the screws provided.

5. Install new plumbing as per diagram. If you are installing a flow control or pre filters, make sure the arrows on them point in the same direction as the water flow.

6. When plumbing new plumbing has been installed, a seal should be attached to the closed by-pass valve. This seal should not be broken unless water is required during emergency or shut-down periods.

7. Plug power cord into the appropriate power source outlet (power source voltage may vary depending on location.

8. Open main valve to water source.

9. Open valve on either side of the sterilizer. (By-pass valve should remain closed) You should hear a sudden rush of water entering the unit at this time. Turn off any faucet that will start the flow of water through the unit.

Warranty:

The UV 5 water disinfection systems carry a seven year warranty on the stainless steel reactor chamber, a one year warranty on UV lamps, and a five year pro rated warranty on all other components.
