SQ-PA
|
S1Q-PA
|
S2Q-PA
|
S5Q-PA
|
S8Q-PA
|
S12Q-PA
|

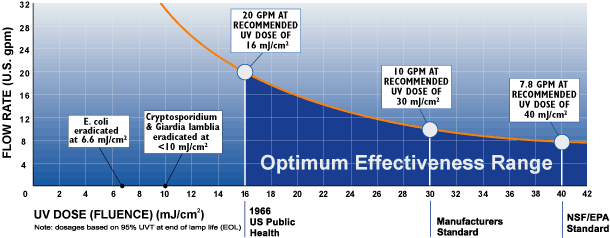

Flow Rate
(95% UVT eol) |
US Public
Health
(16mJ/cm²) |
7.5 lpm
(2.0 gpm)
(0.5 m³/Hr) |
12.3
lpm
(3.2 gpm)
(0.7 m³/Hr) |
15.0
lpm
(4.0 gpm)
(0.9 m³/Hr) |
41.6
lpm
(11.0 gpm)
(2.5 m³/Hr) |
75.7 lpm
(20.0 gpm)
(4.5 m³/Hr) |
110.0
lpm
(29.1 gpm)
(6.6 m³/Hr) |
R-Can
Standard
(30mJ/cm²) |
5.7 lpm
(1.5 gpm)
(0.3 m³/Hr) |
7.5 lpm
(2.0 gpm)
(0.5 m³/Hr) |
11.0
lpm
(2.9 gpm)
(0.7 m³/Hr) |
22.7
lpm
(6.0 gpm)
(1.4 m³/Hr) |
37.9 lpm
(10.0 gpm)
(2.3 m³/Hr) |
57.0
lpm
(15.1 gpm)
(3.4 m³/Hr) |
NSF/EPA
(40mJ/cm²) |
3.8 lpm
(1.0 gpm)
(0.2 m³/Hr) |
5.5 lpm
(1.5 gpm)
(0.3 m³/Hr) |
7.5 lpm
(2.0 gpm)
(0.5 m³/Hr) |
17.0
lpm
(4.5 gpm)
(1.0 m³/Hr) |
29.3 lpm
(7.7 gpm)
(1.8 m³/Hr) |
42.0
lpm
(11.1 gpm)
(2.5 m³/Hr) |
|
Dimensions |
Length |
30.5 cm
(12.0 ") |
38.1 cm
(15.0 ") |
43.2 cm
(17.0 ") |
53.3 cm
(21.0 ") |
90.0 cm
(35.4 ") |
94.0 cm
(37.0 ") |
|
Diameter |
5.2 cm
(2.0 ") |
6.5 cm
(2.6 ") |
6.5 cm
(2.6 ") |
6.5 cm
(2.6 ") |
6.5 cm
(2.6 ") |
8.9 cm
(3.5 ") |
|
Controller |
19 x
8.1 x 6.4 cm
(7.3" x 3.2" x 2.5") |
19 x
8.1 x 6.4 cm
(7.3" x 3.2" x 2.5") |
19 x
8.1 x 6.4 cm
(7.3" x 3.2" x 2.5") |
19 x
8.1 x 6.4 cm
(7.3" x 3.2" x 2.5") |
19 x 8.1 x
6.4 cm
(7.3" x 3.2" x 2.5") |
19 x
8.1 x 6.4 cm
(7.3" x 3.2" x 2.5") |
|
Inlet/Outlet Port Size |
1/4"
MNPT |
1/4"
MNPT |
1/2"
MNPT |
3/4"
MNPT |
3/4" MNPT |
Combo
3/4" FNPT, 1" MNPT |
|
Shipping
Weight |
2.3 kg
(5.1 lbs) |
2.7 kg
(6.0 lbs) |
2.7 kg
(6.0 lbs) |
2.7 kg
(6.0 lbs) |
4.5 kg
(9.9 lbs) |
5.9 kg
(13.0 lbs) |
|
Electrical |
Volts |
100-
240V
50-60Hz |
100-
240V
50-60Hz |
100-
240V
50-60Hz |
100-
240V
50-60Hz |
100- 240V
50-60Hz |
100-
240V
50-60Hz |
|
Power
Consumption |
12 W |
16 W |
19 W |
26 W |
39 W |
42 W |
|
Lamp Power |
10 W |
14 W |
17 W |
24 W |
37 W |
39 W |
|
Lamps/Quartz Sleeves |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
|
Ambient
Temperature |
2-40 °C
(36-104 °F) |
2-40 °C
(36-104 °F) |
2-40 °C
(36-104 °F) |
2-40 °C
(36-104 °F) |
2-40 °C
(36-104 °F) |
2-40 °C
(36-104 °F) |
|
Maximum
Operating Pressure |
8.62
bar
(125 PSI) |
8.62
bar
(125 PSI) |
8.62
bar
(125 PSI) |
8.62
bar
(125 PSI) |
8.62 bar
(125 PSI) |
8.62
bar
(125 PSI) |
|
Audible
Lamp Failure |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
|
Visual
"Power On" |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
|
Reactor
Chamber Material |
304
S.S. (316L available on request) |
304
S.S. (316L available on request) |
304
S.S. (316L available on request) |
304
S.S. (316L available on request) |
304 S.S.
(316L available on request) |
304
S.S. (316L available on request) |
|
Lamp Type |
Sterilume™-EX
(standard-output) |
Sterilume™-EX
(standard-output) |
Sterilume™-EX
(standard-output) |
Sterilume™-EX
(standard-output) |
Sterilume™-EX
(standard-output) |
Sterilume™-EX
(standard-output) |
|
Visual Lamp
Life Remaining |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
|
Total
Running Time |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
