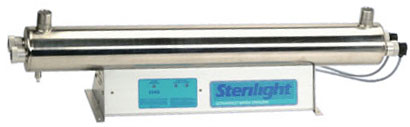

The Sterilight S24Q provides
point-of-entry disinfection with a flow rate of 30 gpm
(113.5 lpm) at a 30 mJ/cm2 dose. These boxed systems can
be used for both residential, being whole home or
cottage treatment, and commercial/industrial
applications. Placed prior to the water heater, all the
water in the home, including the hot water will receive
disinfected water. The ICE 2-lamp ballast provides
constant output current to both lamps in the system,
with an audible alarm as well as a visual LED display of
both lamp status and power. Housed in an attractive
anodized aluminum enclosure, the overall look of the
system provides the customer with a high-end cabinet
style look. Sterilume™-EX coated low pressure germicidal
UV lamps are used to provide an economical way of
treating water requiring a 99.99% reduction in both
bacteria and viruses. The S24Q
is manufactured with a polished, 316L stainless steel,
pressure rated tube and is equipped with 1" MNPT thread
connections. Quality is evident throughout the this
system, ranging from quartz sleeves with fire-polished
ends to seamless connections. Lamp change is easily
accomplished without interrupting the water flow. A
drain port is included on the S24Q to easily drain the
reactor if required.
These disinfection systems offer a 4-log
reduction (99.99%) in bacteria, virus and
protozoan cysts (specifically Giardia lamblia
and Cryptosporidium). Applications include
private wells, camp grounds, hotels, bottlers,
aquaculture, hospitals, food, cottages,
restaurants, breweries, water systems,
laboratories, marine, pharmaceutical, dairies
and many other applications.
Features
|
Model |
Description |
Price |
|
|
S24Q |
Sterilight S24Q By R-Can
24 gpm UV Water
Sterilizer |
$1,699.00 |
|
|
UV-B1224 |
Replacement Bulb for the UV 24
Need to Purchase 2 |
$103.00 |
|
|
UV-QS1224 |
Replacement Quartz Sleeve for the UV 24
Need to Purchase 2 |
$65.00 |
|
|
BA-E36122 |
Replacement Ballast For
S24Q |
|
|
|
Installation Procedure:
1. Note the direction of the
water flow in the supply line to which the unit is being
connected (Left to Right).
2. Refer to the appropriate
plumbing diagram and check to see that you have all the
necessary fittings.
3. Shut off main water supply
valve.
4. Fasten unit to the wall using
the screws provided.
5. Install new plumbing as per
diagram. If you are installing a flow control or pre
filters, make sure the arrows on them point in the same
direction as the water flow.
6. When plumbing new plumbing
has been installed, a seal should be attached to the closed
by-pass valve. This seal should not be broken unless water
is required during emergency or shut-down periods.
7. Plug power cord into the
appropriate power source outlet (power source voltage may
vary depending on location.
8. Open main valve to water
source.
9. Open valve on either side of
the sterilizer. (By-pass valve should remain closed) You
should hear a sudden rush of water entering the unit at this
time. Turn off any faucet that will start the flow of water
through the unit.
Warranty
The S24Q-PA water
disinfection systems carry a seven year warranty
on the stainless steel reactor chamber, a one
year warranty on UV lamps, and a five year pro
rated warranty on all other components. |
