Incandescent
Light Kit For Natural Light Tubular
Skylights |
Installation
Instructions
Step#1
Determine a location that is
attic accessible. Remove
the protective liner off the
inside of the Natural Light
pipe. Using a sharp 1/2
inch drill bit, drill a 1/2 inch
hole 9 inches up from the bottom
of the Natural Light
pipe. |
 |
|
| Step
#2 The Main lamp bracket is
already assembled from the factory.
You will need to remove the conduit
connector, the nut and washer from the
threaded bracket tube. Next, thread
the bracket through the 1/2 inch hole
that you just drilled in the Natural
Light pipe, starting from the inside of
the light pipe, and align the light kit
as pictured below. Secure the light
kit bracket to the light pipe using the
aluminum "I" shape bracket and
tighten (snug). The "I"
shaped bracket rests on the inside of the
light pipe, and the washer and tightening
nut are on the outside of the light pipe. |

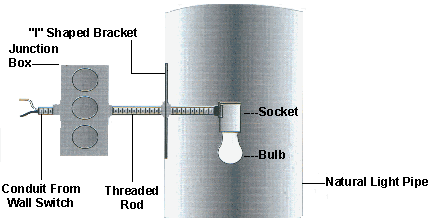

| Step
#3 Push the exposed wires through the
hole that the conduit will be attached
to. Adjust the treaded rod conduit
into the 4" x 4" electrical box
and tighten the conduit connector. |
 |
| Step
#4 Bring in the switched 120
VAC supply wiring into the 4"
x 4" electrical box and secure
as pictured. it is important that
all wiring complies with local codes, be
properly grounded, (and recommended) all
AC feed wiring should be through a GFCI
branch circuit, connect all wires as
pictured. |
| Step
#5 Install the cover onto the 4"
x 4" electrical box and secure to a
suitable location. |
| Step
#6 Install a 60 watt lamp in the lamp
socket and enjoy your new Light Kit. |
|
