EZ Heat Low Cost Solar Water Heaters For
Above Ground Swimming Pools
 |
There is an EZ Heat packaged solar pool
heating system designed to fit any above
ground pools.
Now you can
enjoy real comfort in your pool, whatever
your budget.
The manufacturer charges a 25%
re-stocking fee on any returns. |
Quick, do-it
yourself installation
You don't
even have to hire someone to install it. Just select a
sunny spot, unroll EZ Heat, connect a filter hose
between EZ Heat and the filter outlet and another
between EZ Heat and the pool inlet, using hose clamps.
Turn on the filter pump and turn on the control valve.
EZ Heat starts heating the pool, all in less than thirty
minutes, with no special skills needed. Put your hand in
the water entering the pool. You'll be pleased with its
warmth.
Which EZ Heat
is right for my pool
EZ Heat is
made in three model lines. Two model lines have solar
collectors in 12, 20 or 25-foot lengths for different
size pools. Ninety percent of the heat
loss on most pools is from the water surface. Therefore, the
surface area of the swimming pool determines the
total area of the solar collectors needed to heat
the pool.
Select EZ Heat
systems from the table in the EZ Heat table.
The solar
collector area provided by this table should warm
the pool during the normal swimming season to a
temperature that is 8 to 10 degrees higher than
that of an unheated pool if you use a cover at
night and in bad weather.
For higher
temperatures and a longer season you can double
the size of the system by adding a Basic system
to an EZ Heat system.
Use Coupling Kit
Pt. #1006. To double the size of EZ Heat Deluxe
use System Extender, Pt. #1020.
With
any solar system, if you want to eliminate the
pool cover and raise the temperature of the pool
more than 10 degrees above an unheated pool, the
total area of your solar collectors should be at
least 60 percent of the pool surface area. In
addition, you should increase the size to
compensate for less than ideal locations.
The manufacturer charges a 25% re-stocking fee on any
returns.
|
 |
1.
EZ Heat is the only above-ground
system made with a three-port control valve.
It lets you shut off the solar system when
the pool has reached your desired
temperature or in cold or rainy weather.
If water runs
through the solar system in bad weather it
will cool your pool. Without a way to shut
off the system when the pool is warm enough,
you could find yourself with an oversize hot
tub.
|
2.

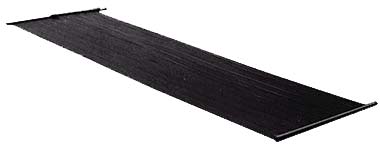

EZ Heat Basic is the same as EZ Heat except
that it has no control valve. It is the lowest cost
heater you can buy, but the only way to shut it off is
to turn off the pump. You can add EZ Heat Basic units to
an EZ Heat to get more heat.
| You may want
more heat when you decide you want the pool
to warm up faster after bad weather or give
you warmer water in the spring and fall.
You can also
mount EZ Heat Basic on a roof where the EZ
Heat control valve would not be accessible.
However, if
you plan to put your system on the roof, we
suggest you look at our Hi-Tec Pool Heaters.
|
 |
|
3.
EZ Heat Deluxe offers all the
features of EZ Heat plus an oversize 4x25
solar collector with 50 solar collector
tubes in parallel flow delivering maximum
heat to the pool.
EZ Heat Deluxe
also has a special oversize three-port
control valve.
You can add a
fully automatic control system at any time
for more convenience and comfort. |
Above Ground Pool
Sizes
|
Round |
Oval |
EZ Heat Solar System |
System Size |
|
12 or 15 |
10 x 15 or 12
x 18 |
EZ Heat 12 |
4 x 12 |
|
18 or 21 |
12 x 24 or 15
x 24 |
EZ Heat 20 |
4 x 20 |
|
24 |
15 x 30 |
EZ Heat 25 |
4 x 25 |
|
28 |
20 x 40 |
EZ Heat 20
plus EZ Heat Basic 20* |
8 x 25 |
|
30 |
20 x 40 |
EZ Heat 25
plus EZ Heat Basic 25* |
8 x 25 |
Above Ground
Pools Using Bubble Covers
|
Round |
Oval |
EZ Heat Solar System |
System Size |
|
12, 15 or 18 |
10 x 15 or 12
x 24 |
EZ Heat 12 |
4x12 |
|
21 or 24 |
15 x 30, 16 x
25
or 15 x 30 |
EZ Heat 20 |
4x20 |
|
27 |
16 x 32 or 18
x 33 |
EZ Heat 25 |
4x25 |
|
30 |
20 x 40 |
EZ Heat 20
plus
EZ Heat Basic 20* |
8x20 |
|
*Use EZ Heat Coupling Kit
|
Price List for EZ
Heat Systems & Accessories
|
Model |
Description |
Price |
|
|
1007 |
EZ Heat Basic 12
Packaged solar
system with 48 sq. ft. collector. |
$384 |
|
|
1001 |
EZ Heat Basic 20
Packaged solar
heating system with 80 sq. ft. solar
collector |
$534 |
|
|
1016 |
EZ Heat Basic 25
Packaged solar
heating system with 100 sq. ft. solar
collector |
$630 |
|
|
1055 |
EZ Heat 12
Packaged solar
system with 48 sq. ft. collector and 3-port control valve |
$468 |
|
|
1056 |
EZ Heat 20
Packaged solar
system with 80 sq. ft. collector and 3-port control valve. |
$612 |
|
|
1057 |
EZ Heat 25
Packaged solar
system with 100 sq. ft. collector and 3-port control valve |
$708 |
|
|
1015 |
EZ Heat Deluxe
Packaged solar
heating system
with 100 sq. ft. solar collector & 3-way
control valve |
$786 |
|
|
Accessories |
|
1020 |
EZ Heat Deluxe
System Extender
Use with EZ Heat
Deluxe to add 100 sq. ft. solar collector. |
$690 |
|
|
1006 |
EZ Heat Basic
Coupling Kit
Use to add a
Basic system to an EZ Heat system or couple
together two Basic systems |
$46.80 |
|
|
1019 |
EZ Heat Roof or
Rack Hold-Down Kit
Use whenever any
EZ Heat or EZ Heat Deluxe or Basic system is
not installed on the ground. |
$34.80 |
|
|
1005 |
EZ Heat Hose
Connection Kit for 1 1/2 inch Hose |
$16.80 |
|
|
3013 |
Mat Splice
Package of 10.
Use to repair solar collector surface. |
$19.20 |
|
|
3052 |
Connecting Hose
1 1/2 inch, 24
ft. long. Use to connect any EZ Heat system
to the pool filtration system or as a
replacement part for EZ Heat Deluxe |
$31.20 |
|
|
1017 |
EZ Heat
Header & Valve Replacement Assembly |
$300 |
|
|
1018 |
EZ Heat 48"
Header Replacement Assembly |
$72 |
|
|
2083 |
EZ Heat Basic
2 ft. Header Replacement Assembly |
$66 |
|
