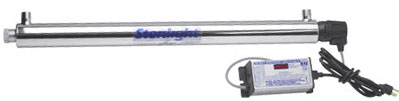

Sterilight S8Q-PA By R-Can 8 gpm UV Water Sterilizer

Sterilight S8Q-PA By R-Can 8 gpm UV Water Sterilizer FREE SHIPPING

Sterilight S8Q-PA By R-Can Ultra Violet (UV) 8 gpm UV Water Sterilizer

The Sterilight S8Q-PA provides point-of-entry disinfection with a flow rate of 10.0 gpm (37.9 lpm) at a 30 mJ/cm² dose (7.7 gpm (29.3 lpm) if a dose of 40 mJ/cm² is required.) This modular system, incorporating our new Silver™ controller, is ideal for whole home treatment of an entire home or cottage. Placed prior to the water heater, all the water in the home, including the hot water will receive disinfected water. The Silver™ controller provides constant output current and a universal power input (100-240V./50-60Hz.), as well as visually displaying remaining lamp life and total days of operation. All this is packaged in a new water-tight case and come fully CSA and CE compliant. Sterilume™-EX coated low pressure germicidal UV lamps are used to provide an economical way of treating water requiring a 99.99% reduction in bacteria and viruses.

The Sterilight S8Q-PA is manufactured with a polished, 304 stainless steel, pressure rated tube and comes with ¾ " MNPT connections. Quality is evident throughout the Silver platform ranging from quartz sleeves with fire-polished ends to seamless connections. Lamp change is easily accomplished without interrupting the water flow and the overmoulded connector can be removed without any additional tools

Features:

10.0 gpm (37.9 lpm) at a 30 mJ/cm² dose (7.7 gpm (29.3 lpm) if a dose of 40 mJ/cm² is required.)
NEW electronic "ICE" ballast featuring open loop current control (patent pending), ballast features IEC connector, audible alarm & power-on indicator
Hard glass, low pressure mercury vapor lamps with high isolation pin design
Quick-lock molded lamp connector
Compact design incorporating 304 stainless steel reactor chambers, brilliantly polished for laboratory or medical applications
Easy servicing - no need to disconnect water flow to change UV lamp
Open end quartz sleeves and aluminum gland nuts for optimum operating temperature and sealing efficiency
99.99% destruction of bacteria, virus, and protozoan cysts (Giardia lamblia & cryptosporidium) at rated flow
Natures way to protect your water without the addition of harmful chemicals
Includes mounting clamp
Seven year warranty on reactor chamber for unparalleled protection
Product certified by CSA (C US) and CE
Product Manual
Product Specs
Due to health regulations, all used/installed units/filters are non- refundable.

Model	Description	Price
S8Q-PA	Sterilight S8Q-PA By R-Can 8 gpm UV Water Sterilizer	$550
FIL220UV8	Sterilight S8Q-PA By R-Can 8 gpm UV Water Sterilizer With Filters	$675
***Free Shipping offer is only valid for purchases being shipped via ground, within the continental US. All orders being returned, refused, or mis-orders by the customer, will be charged a shipping fee. When credit is issued to the customer the cost of shipping will be deducted from the credit amount. Shipping charges will apply to special orders, specialty items and wholesale orders. Installed units cannot be returned for refund or exchange.
UV-T5110V	Replacement Ballast For UV Systems 2-12 GPM	$130.00
SP10-20	20"×2½" 5 µ Spun Polypropylene Filter	$7.00
10-250-190-20	20"×2½" Carbon Block Filter	$25.00
PB+1CB	20"×2.5" MATRIKX® Lead Removal Standard Carbon Block Filter PDF Tech Sheet	$39.90
FM-1-20	Flowmatic 20" × 2¾" Flow-Max® Standard Pleated Sediment Filter Re-useable, rinses out with garden hose or wash in dishwasher without detergent. Replaces the SP10-20	$25.00
S810RL	SterilumeTM - Ex UV Lamps 8 GPM Unit FITS S8Q-PA, S8Q, S8Q-GOLD	$87.00
QS-810	Quartz Sleeve for S8Q-PA FITS S8Q, PA, GOLD	$57.00

Installation Procedure:

1. Note the direction of the water flow in the supply line to which the unit is being connected (Left to Right).

2. Refer to the appropriate plumbing diagram and check to see that you have all the necessary fittings.

3. Shut off main water supply valve.

4. Fasten unit to the wall using the screws provided.

5. Install new plumbing as per diagram. If you are installing a flow control or pre filters, make sure the arrows on them point in the same direction as the water flow.

6. When plumbing new plumbing has been installed, a seal should be attached to the closed by-pass valve. This seal should not be broken unless water is required during emergency or shut-down periods.

7. Plug power cord into the appropriate power source outlet (power source voltage may vary depending on location.

8. Open main valve to water source.

9. Open valve on either side of the sterilizer. (By-pass valve should remain closed) You should hear a sudden rush of water entering the unit at this time. Turn off any faucet that will start the flow of water through the unit.

Sterilight S8Q-PA Specifications:

Length:	35"
Width:	2.5"
Height:	2.5"
Cell Diameter:	2.5"
Voltage:	100 - 130V./50 - 60Hz. or 200-250V./50-60Hz.
Power Consumption:	39 watts
Total Lamp Watts:	37 watts
Maximum Operating Pressure:	125 psi
Ambient Temperature:	36-104¡F
Quartz Sleeve:	Yes
Inlet/Outlet Port Size:	3/4" MNPT
Visual "Power On":	Yes
Audible Lamp Failure System:	Yes
